DESIGNED AND MADE IN SLOVENIA, EUROPE.

These structures are made to suit every possible gym: from home use to the biggest professional sport facilities. Modular system allows you to expand the WALL MOUNT to your liking and add infinite customisation options, like extending the structure and gaining numerous squat/bench press/pull up stations. When your gym expands - so does your WALL MOUNT. All units are made from 60 x 60 x 3 mm steel profiles, which are connected with 2 different sizes of pull up bars - 1040 mm and 1740 mm - to provide narrow and wide field for use. With the , you can completely customize and personalize the wall mount to fit your needs.

J-Cups for each squat / bench press station are included in the unit.

DIMENSIONS:

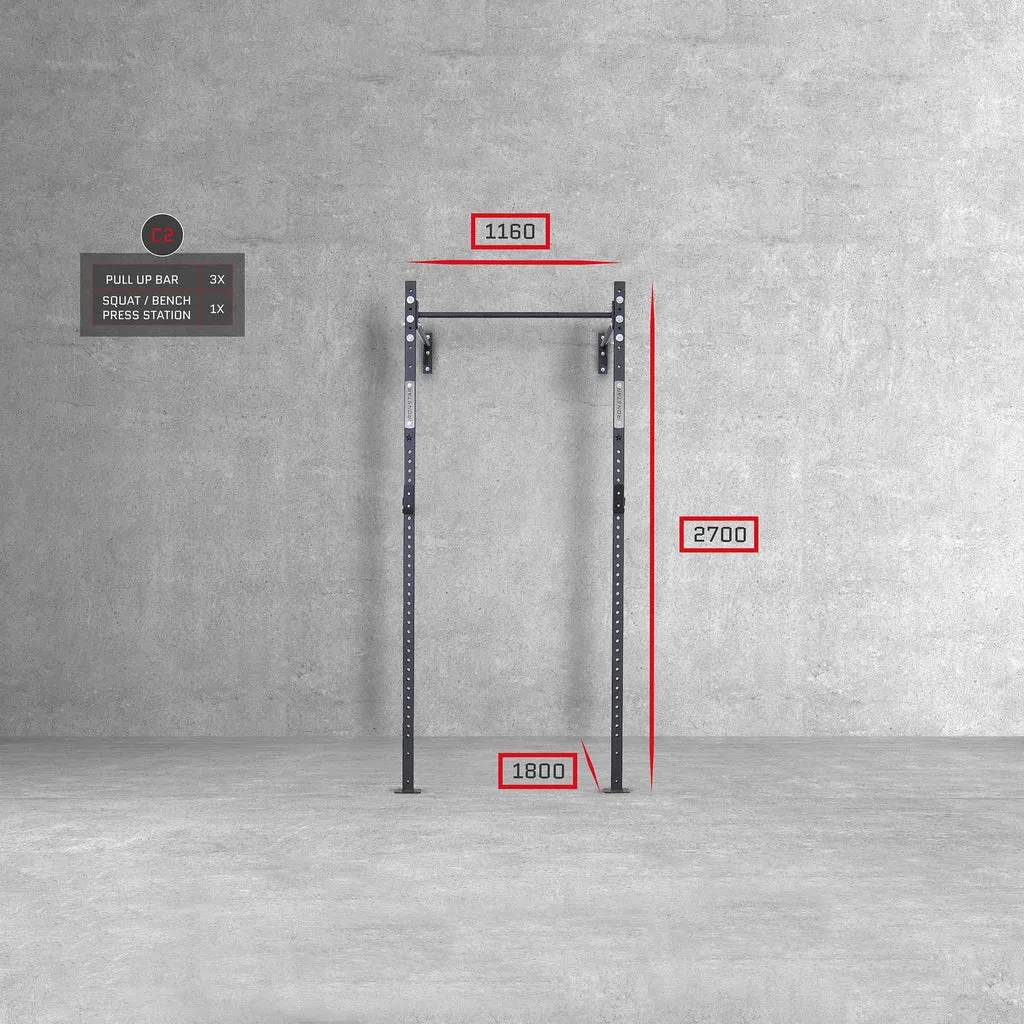

• C2: 2700 x 1160 x 1800 mm (height x width x depth)
  • 1 squat/bench press station, 3 pull up stations, 1 pair of J-Cups
• C3: 2700 x 2960 x 1800 mm (height x width x depth)
  • 1 squat/bench press station, 5 pull up stations, 1 pair of J-Cups

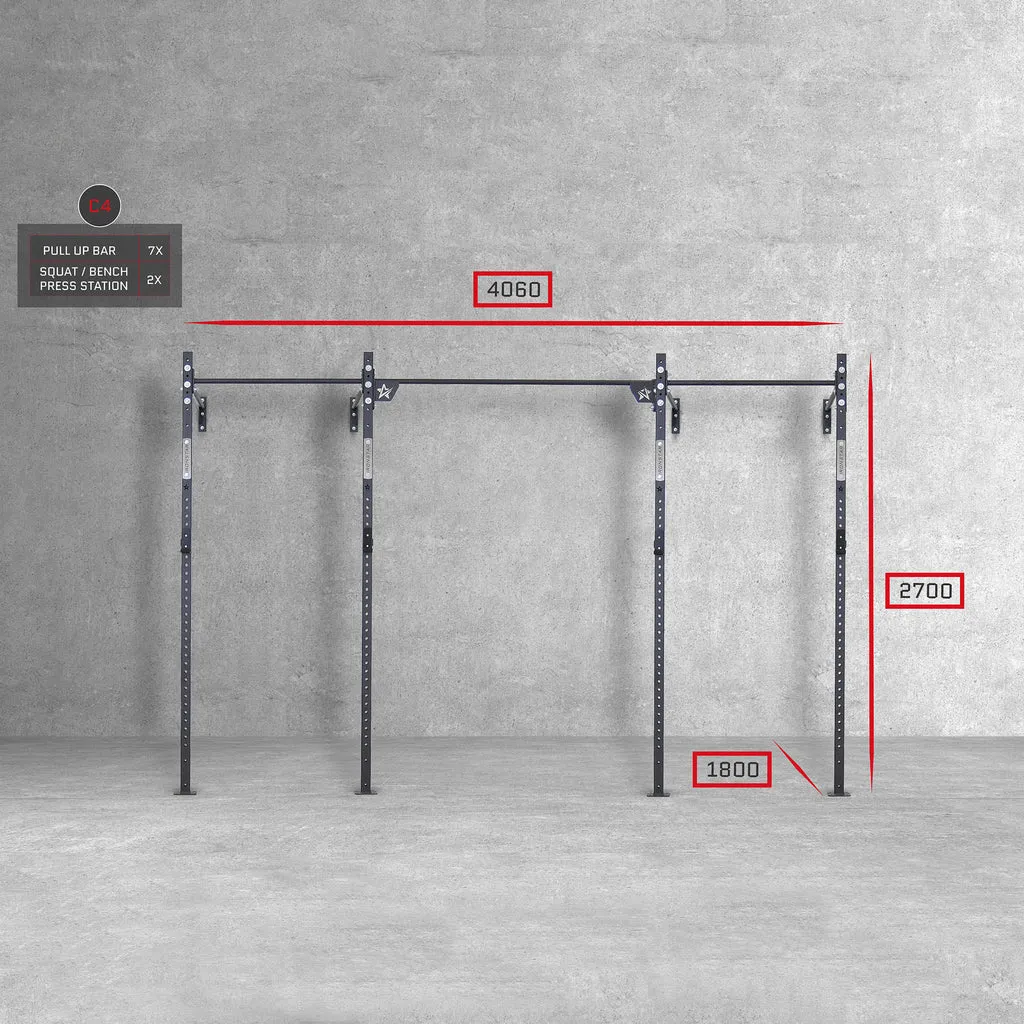

• C4: 2700 x 4060 x 1800 mm (height x width x depth)
  • 2 squat/bench press stations, 7 pull up stations, 2 pairs of J-Cups

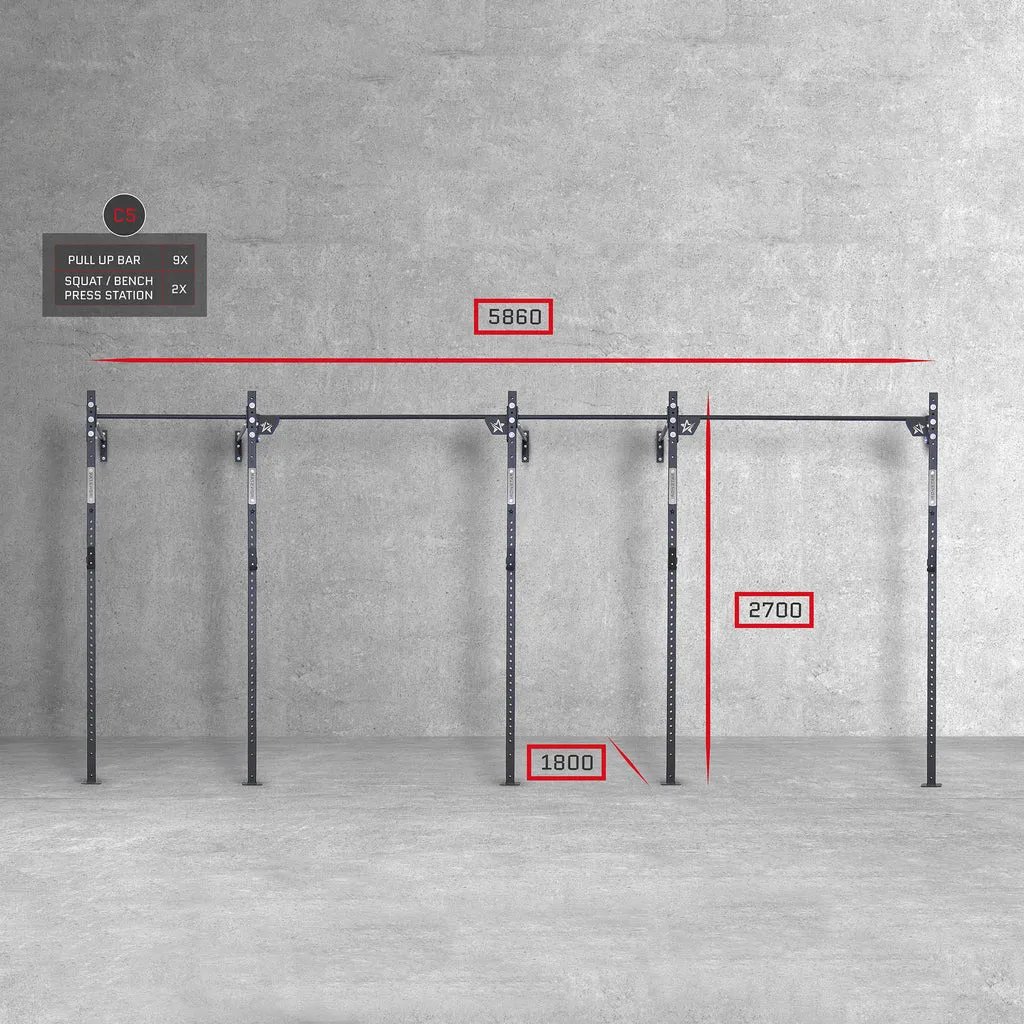

• C5: 2700 x 5860 x 1800 mm (height x width x depth)
  • 2 squat/bench press stations, 9 pull up stations, 2 pairs of J-Cups

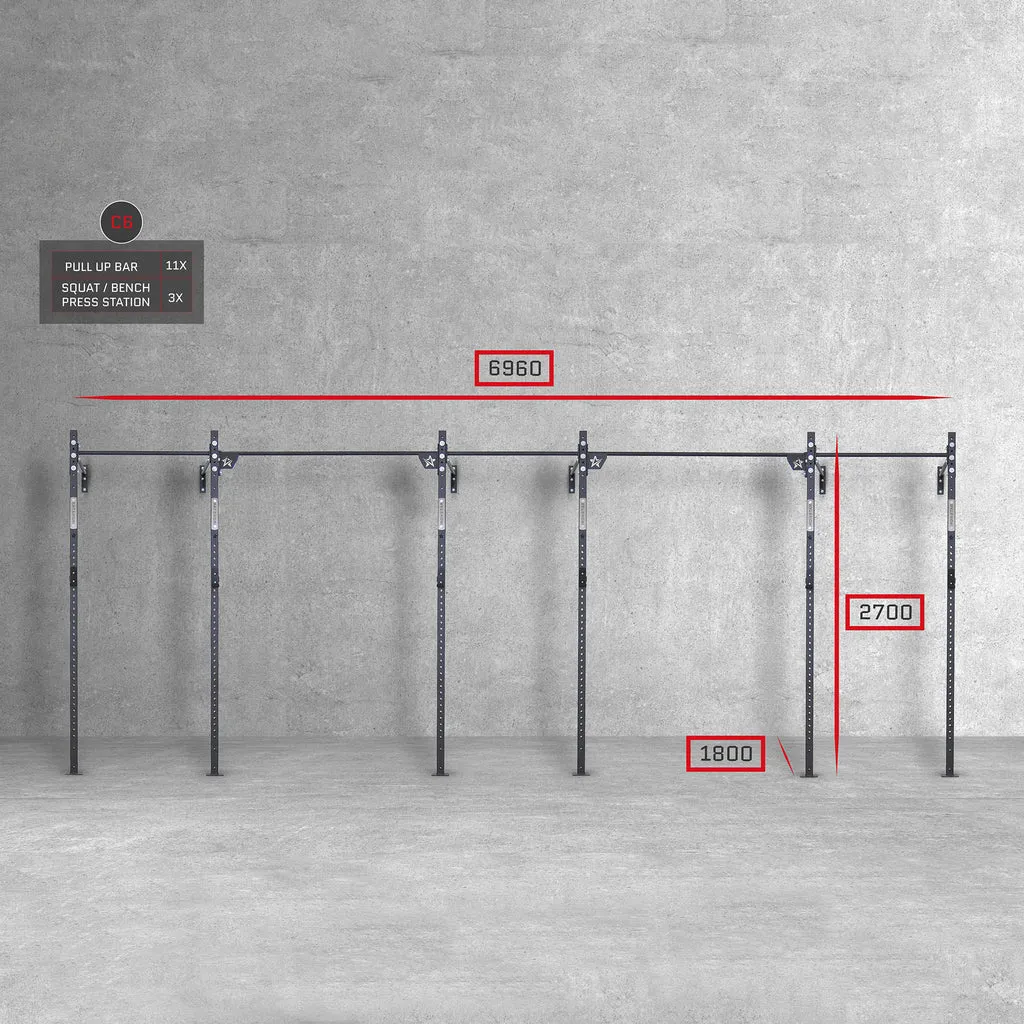

• C6: 2700 x 6960 x 1800 mm (height x width x depth)
  • 3 squat/bench press stations, 11 pull up stations, 3 pairs of J-Cups

SPECIFICATIONS:

• Maximum axial height of the pull up bar is 2625 mm, minimum axial height is 1925 mm
• Axial distance between front holes is 50 mm
• Steel profiles: 60 x 60 x 3 mm (LITE series)
• Color: black, powder coated
• Compatible with

Add-ons and accessories on photos are not included in the price of the basic models of the STAR LITE BASIC WALL MOUNTS.

IMPORTANT: Please note that the STAR LITE BASIC WALL MOUNTS structures have side holes only at the bottom and at the top of the columns. Therefore, they are not compatible with the ADJUSTABLE PULL UP BAR and FRONT MOUNTED DIP STATION.

*WARNING: The system must be secured to the wall and floor. Wall and floor mounting screw material NOT INCLUDED. If your room has underfloor heating and therefore it is not possible to attach it to the floor, contact us at and our team will help you find a solution for your needs.

Customizations and adjustments available. If you are interested in STAR LITE BASIC WALL MOUNT structures with a depth of 1100 mm (narrow field) or if you would want to personalize the structure to your needs, reach out to us through and our team will find the best possible solution for you.
