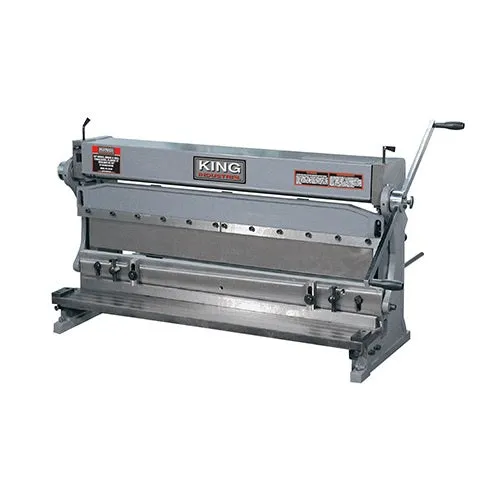

- Sturdy cast-iron frame
- Bed is precision ground for an accurate working surface
- Dual edge, reversible shear blade
- One female "V” shaped die
- Slip rolls are precision turned, ground and polished with wire grooves
- Includes adjustable length stop, height stop block and extension bars with 90° angles
- SHEAR :
- Maximum thickness (mild steel) : 20 Gauge
- Maximum length : 30"
- Material stop range : 3-1/4” - 19-1/2"
- BRAKE :
- Maximum thickness (mild steel) : 20 Gauge
- Shut height : 5-1/8”
- Material stop range : 3-1/4” - 19-1/2”
- Male die sizes : 10”, 8”, 6”, 3”, 2”,1"
- SLIP ROLL :
- Number of rolls : 3
- Maximum thickness (mild steel) : 20 Gauge
- Maximum length : 29”
- Roller diameter : 1 1/2”
- Minimum roll diameter : 1-1/2” ID
- Minimum radius : 3/4”
- Wire groove diameters : 5/32”,13/64”, 13/64”, 7/32”
- Assembled dimensions (LxWxH)/weight : 40” x 30” x 22” / 337 lbs
