● Eyepiece: WF10X/18mm

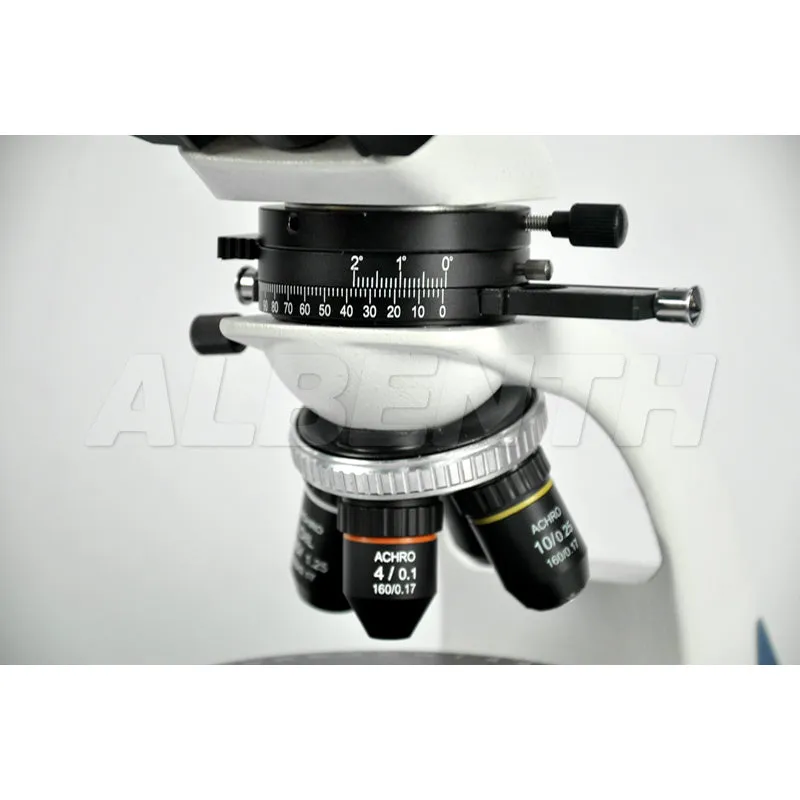

● Objective: 45mm DIN achromatic objective: 4X, 10X, 40X(S), 100(S,Oil)
● Head: Trinocular, Interpupillary Distance: 55-75mm, 30°Inclined, 360°Rotatable, Rotatable Analyzer with Graduation 0°-90°, Sliding out of Optical Path
● Stage: Revolving round stage: Φ160mm, 360° rotatable and graduated 1° Increments, minimum resolution 6’
● Condenser: ABBE condenser: N.A.1.25; Ф2-Ф30mm iris diaphragm and Ф32 Filter
● Focusing adjustment: Coaxial coarse and fine focusing adjustable mechanism: 14mm, precision: 0.01mm
● Others: Optical compensator: λSlip (first class red), 1/4 λ slip Polarize: on the light collector, 360° rotatable
● Illumination: Built-in adjustable brightness 1W LED lamp
